Easily Transition From Foam To Balsa Aircraft

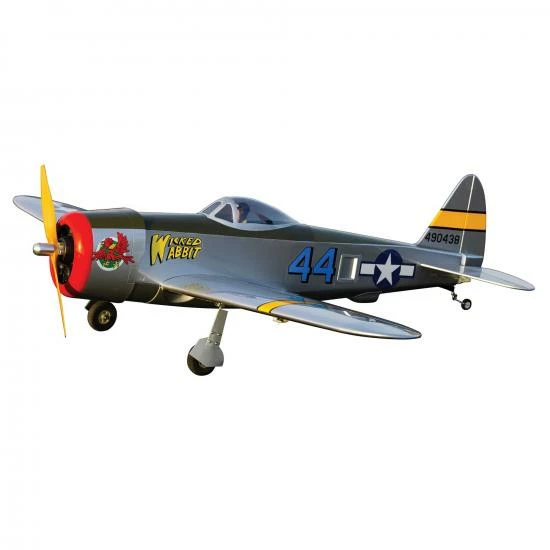

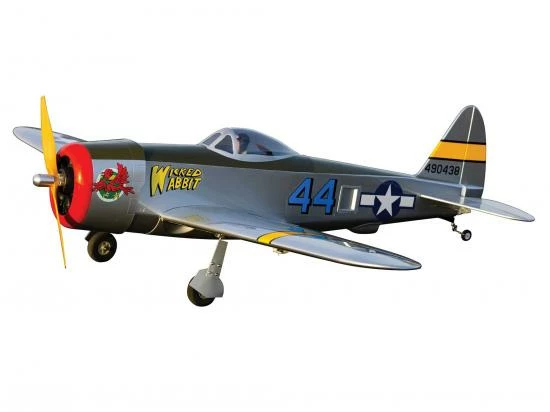

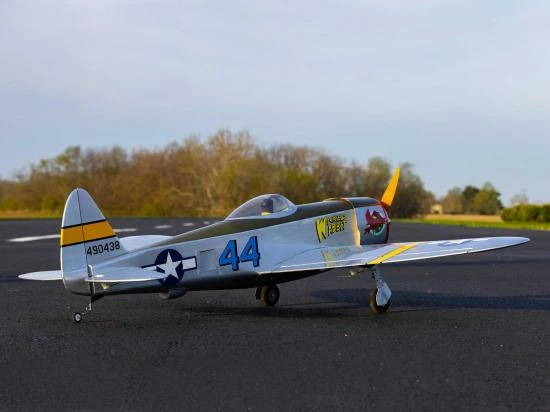

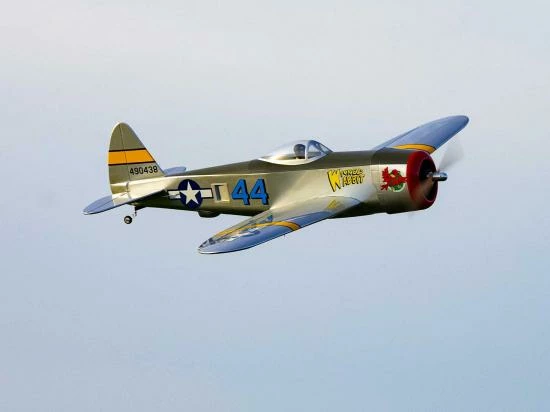

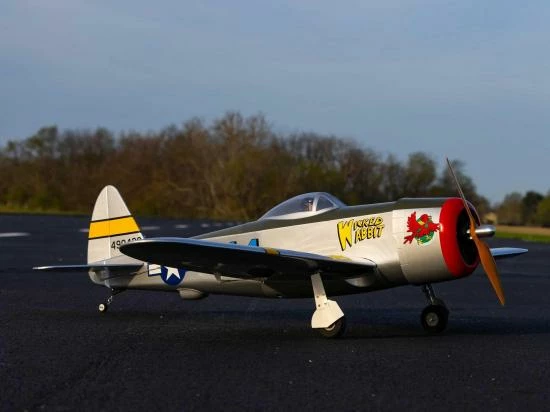

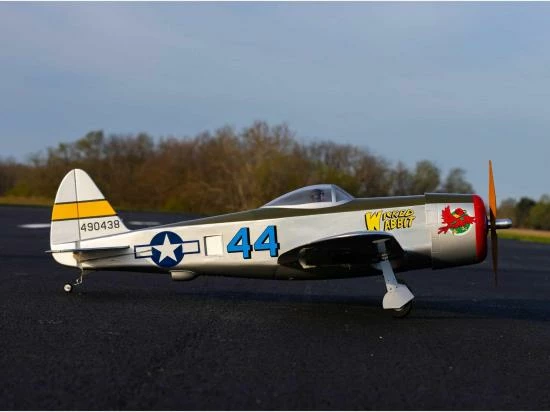

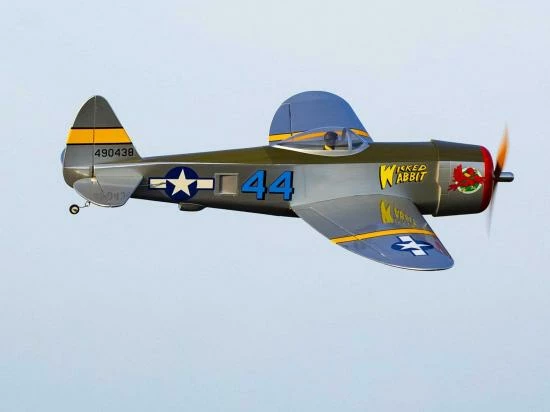

For the sport and club pilot looking to transition from a foam to balsa aircraft, the new Hangar 9® P-47 Thunderbolt delivers a true Plug-N-Play® completion replica model of one of the most popular WWII warbirds ever modeled. Foam RC pilots will be familiar with the P-47 brushless outrunner power system, wide variety of battery options and easy field assembly, while the all-wood airframe is finished in genuine UltraCote® that’s long lasting and easy to maintain.

The P-47 Thunderbolt is crafted from the ground up to be the perfect first balsa aircraft for foam pilots looking to step up into the scale world of RC warbirds. As a Plug-N-Play completion level, the P-47 Thunderbolt broadens its appeal for first time balsa pilots and balsa enthusiasts looking for a plane with high play value and low assembly time.

Features

Expertly constructed with lightweight, laser-cut balsa and plywood
Plug-N-Play® Completion Level
Fits a wide variety of battery options to provide a wide range of performance and flight times.
Two decal sets lets you customize the trim in “Wicked Wabbit” or “Hun Hunter” livery
No glue required for main assembly and can be ready to fly in much less time than it takes to charge a battery (Glue is recommended for 6S LiPo battery operation)
Painted fiberglass cowl
Optional simulated radial engine included
60-amp Spektrum™ Avian™ Smart ESC provides real-time battery voltage, current, motor RPM and other data via compatible receivers and transmitters

Factory-installed 4250-600Kv Brushless Outrunner Motor
Landing gear doors and pilot increase realistic appeal
Four factory-installed Spektrum™ A391 servos
Large magnetic top hatch makes access to electronics and batteries convenient.
Two-piece plug in wings for easier transportation and field assembly
Factory-installed Hangar 9® electric main retractable landing gear
Covered in genuine Hangar 9® UltraCote® film
Efficient 14 x 12 wood propeller included for 4S Lipo battery powered. (5S and 6S LiPo batteries require a propeller change)

Overview

The Hangar 9® P-47 Thunderbolt PNP bridges the gap between foam and balsa pilots perfectly! For the sport and club pilot looking to transition from a foam to balsa/wood aircraft, the new P-47 Thunderbolt delivers a true Plug-N-Play® completion Fun Scale model of one of the most popular WWII warbirds ever modeled. Foam RC pilots will be familiar with the P-47 brushless outrunner power system, wide variety of battery options and easy field assembly. It features lightweight, balsa and plywood construction with carbon fiber reinforcements and is finished in genuine UltraCote® that’s long lasting and easy to maintain. The two-piece plug-in wings allows for convenient transportation and set up. Pilots can be ready to fly in much less time than it takes to charge a battery. At the workbench, the P-47 assembly is easy with only common tools needed. All you need to do is bolt the model together, install the receiver, charge a battery and fly. Flying a balsa warbird aircraft has never been easier. The new Hangar 9® P-47 Thunderbolt PNP makes it easy to fly and look good doing it.

Plug-N-Play® Completion Level

This Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately). Simply install the receiver, finish any final assembly, and fly!

Lightweight Construction

Laser-cut, lightweight balsa and plywood construction that’s expertly built to exacting standards gives the P-47 Thunderbolt design exceptional durability. Genuine Hangar 9® UltraCote® covering, factory applied with precision, provides an easy-to-maintain finish that’s vivid no matter how you look at it.

Easy Assembly

No glue is required for main assembly and you can have the P-47 Thunderbolt PNP ready to fly in less time than it takes to charge a battery! The wing design makes transport and storage as practical and convenient as possible.

Smart Technology

The P-47 Thunderbolt PNP is equipped with an exclusive Spektrum™ Avian™ Smart ESC that can provide a variety of real-time power system related telemetry data including motor RPM, current, battery voltage and more via compatible receivers (including the SPMAR637T) and Spektrum AirWare™ equipped transmitters while you fly.

P-47 Thunderbolt PNP – 58.4 Specfications:

Approximate Flight Time: 6-8 minutes
Battery: Sold Separately
CG (Center of Gravity): 90mm (80mm-95mm range)
Charger: Sold Separately
Completion Level: Plug-N-Play
Connector Type: IC5
Power Type: Electric
Landing Gear: Included
Material: Wood
Minimum Required Radio: Full-range, 6+ channel transmitter and receiver
Minimum Speed Control: 60A
Motor Size: 4250-600kv
Motor Type: Brushless – Outrunner
Product Length: 43″ (1092 mm)
Product Weight: 103 oz, 6.4lb, 2915g
Propeller Size: 14×12
Radio: Sold Separately
Receiver: Sold Separately
Recommended Motor Battery: 4S 14.8V 5000mAh LiPo Battery
Retracts: Included
Servos: Included
Speed: 70+
Speed Control: Included
Technology: Smart
Trim Scheme Colors: Silver / Olive Drab / Red
Wing Area: 545 sq
Wingspan: 56.5″ (1435 mm)

In The Box

(1) Hangar 9 P-47 Thunderbolt PNP
(1) Spektrum™ Avian 60 Amp Brushless Smart ESC (installed)
(1) 4250-600Kv Brushless Outrunner Motor (installed)
(1) 14×12 Wood Electric Propeller (included)
(4) Spektrum A391 39 gram Digital Servo (installed)
(1) Main Retractable Landing Gear (installed)
(1) User Manual

Needed to Complete

(1) Full-range, 6+ Channel Transmitter and Receiver
(1) 4S 14.8V to 6S* 22.2V 4000-5000mAh LiPo Battery with EC5™ or IC5® Connector
(1) Compatible LiPo Charger
*6S (22.2V) LiPo battery requires a 12×8 propeller. The included 14×12 wood propeller is for 4S (14.8V) LiPo battery operation.
